Ethernet Switch

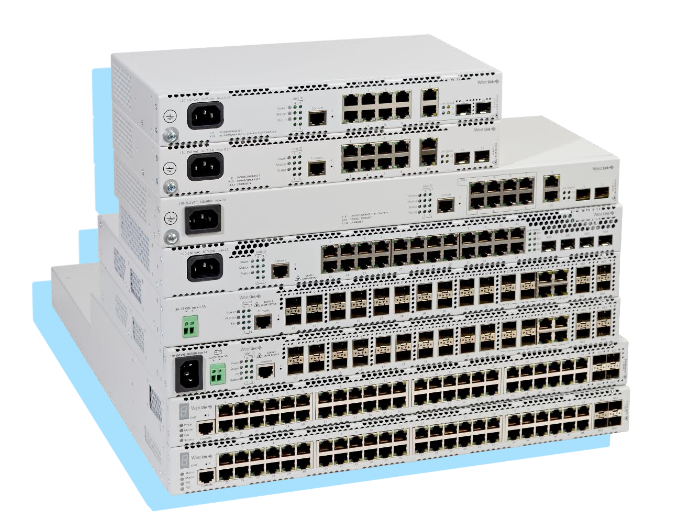

Access switches

WLS-1010308
  • 8х1G
  • 2х1G Combo
  • 2x1G
  • L3
  • AC/DC
  • 240 W

$1600

order
WLS-1010324-P
  • 24x1G PoE/PoE+
  • 4x10G SFP+
  • L3
  • AC
  • 380W

$1160

order
TECHNICAL FEATURES WLS-1010308 WLS-1010324
Bandwidth 20 Gbps 128 Gbps
Throughput for 64-byte packets 14.7 MPPS 92.1 MPPS
VLAN table 4094
MAC table 16384
L2 Multicast groups 2046
ARP tables 820
Stacking up to 8 devices
Power supply 230 V АС, 50 Hz 230 V АС, 50 Hz / 48 V DC

Access switches (POE)

WLS-1010308-P
  • 8x1G PoE/PoE+
  • 2x1G SFP
  • 2x1G
  • L3

$1060

order
WLS-1010324-P
  • 24x1G PoE/PoE+
  • 4x10G SFP+
  • L3

$1460

order
TECHNICAL FEATURES WLS-1010308-P WLS-1010324-P
Bandwidth 24 Gbps 128 Gbps
Throughput for 64-byte packets 17.7 MPPS 93.1 MPPS
VLAN table 4094
MAC table 16384
L2 Multicast groups 2046
ARP tables 820
Stacking up to 8 devices
Power supply 230 V AC, 50 Hz / 48 V DC

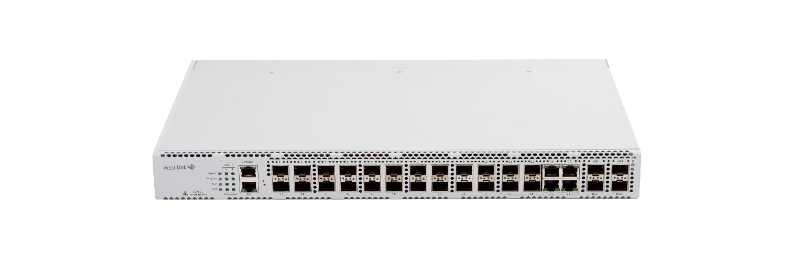

Aggregation switches (1G -> 10G)

WLS-10200324
  • 20x1G SFP
  • 4x1G Combo
  • 4x10G SFP+
  • 1x10/100/1000BASE-T (OOB)

$1200

order
TECHNICAL FEATURES WLS-10200324
Bandwidth 128 Gbps
Throughput for 64-byte packets 95 MPPS
VLAN table 4094
MAC table 16384
L2 Multicast groups 4088
ARP tables 4023
Stacking up to 8 devices
Power supply 230 V AC, 50 Hz / 48 V DC

Service Router

Service Gateways

WLR-1001
  • 4 x 10/100/1000BASE-T
  • 2 x 1000BASE-X SFP
  • 2 x USB 2.0
  • Console

$1260

order
WLR-2002
  • 2 х 10/100/1000BASE-T
  • 2 x Combo 10/100/1000BASE-T/1000BASE-X SFP
  • 1 x USB 2.0, 1 x USB 3.0
  • 1 slot for SD cards, Console

$1300

order
TECHNICAL FEATURES WLR-1001 WLR-2002
Firewall performance 0.33 Gbps 1.97 Gbps
IPS/IDS performance 34 Mbps 93.1 MPPS
VPN tunnels 10 250
IPSec VPN performance 4К 250К
IPSec VPN performance 1М 1.4M
Power supply 230 V AC, 50 Hz

IP Phones

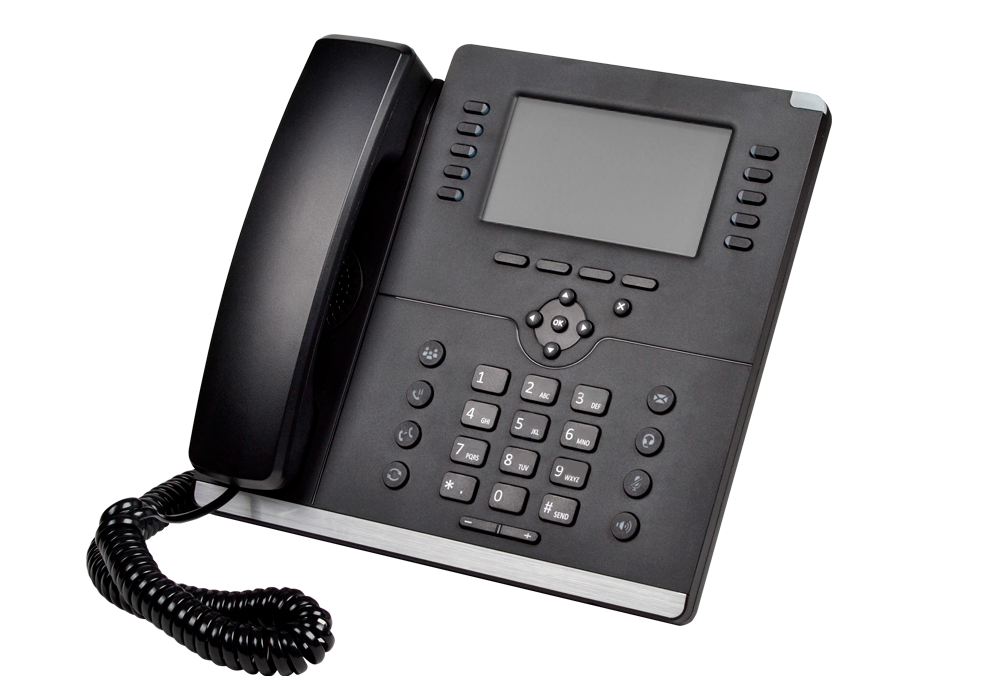

WLV-20
WLV-20
  • Power over Ethernet (PoE+)
  • Extension consoles connectivity
  • 1 Gbit Ethernet ports
  • Color LCD
order
TECHNICAL FEATURES WLV-20
CPU 2 cores × 800 MHz
DDR3 256 MB
NAND Flash 512 MB
OS Linux
Display 4.3 inch ( 800 × 480 )
RJ-45 x2
RJ-9 x1
RJ-25 x1

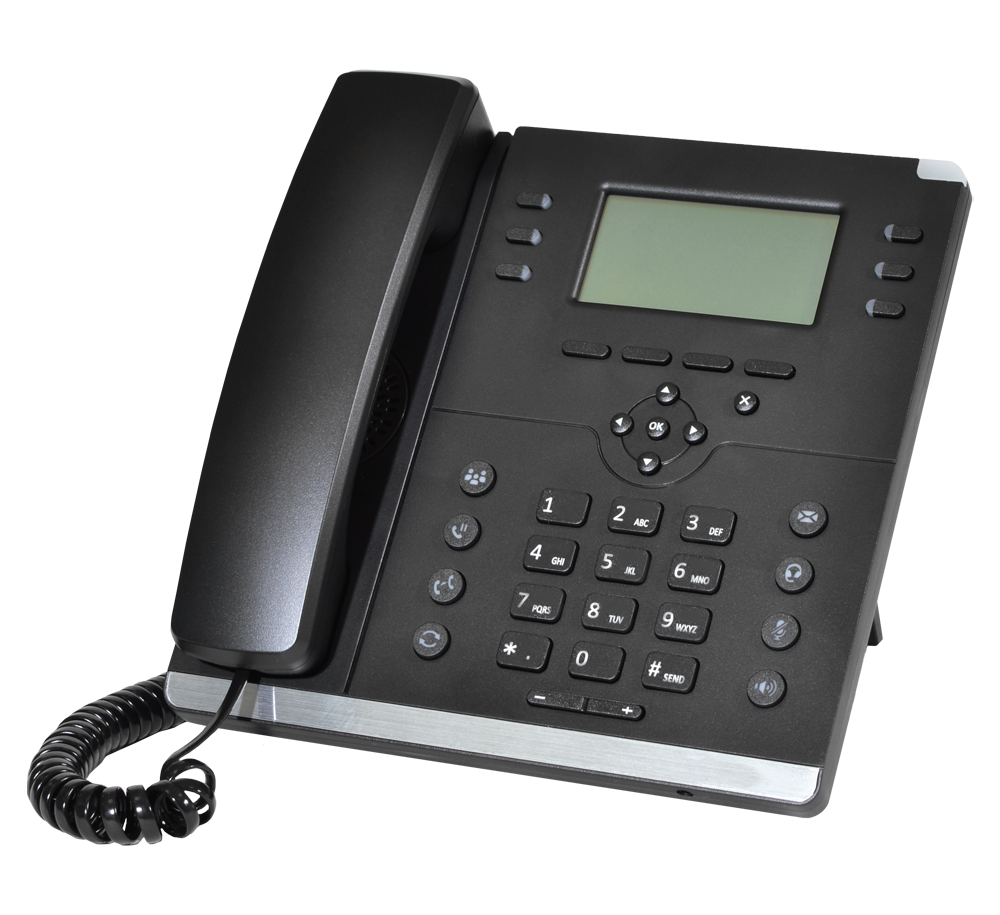

WLV-10
WLV-10
  • Power over Ethernet (PoE+)
  • Ergonomic design
  • 1 Gbit Ethernet ports
  • Full duplex speakerphone
order
TECHNICAL FEATURES WLV-10
SDRAM 512 MB
SPI Flash 256 MB
OS Linux 4.4
Display 3.2 inch
RJ-45 x2
RJ-9 x1

Wireless Access Points

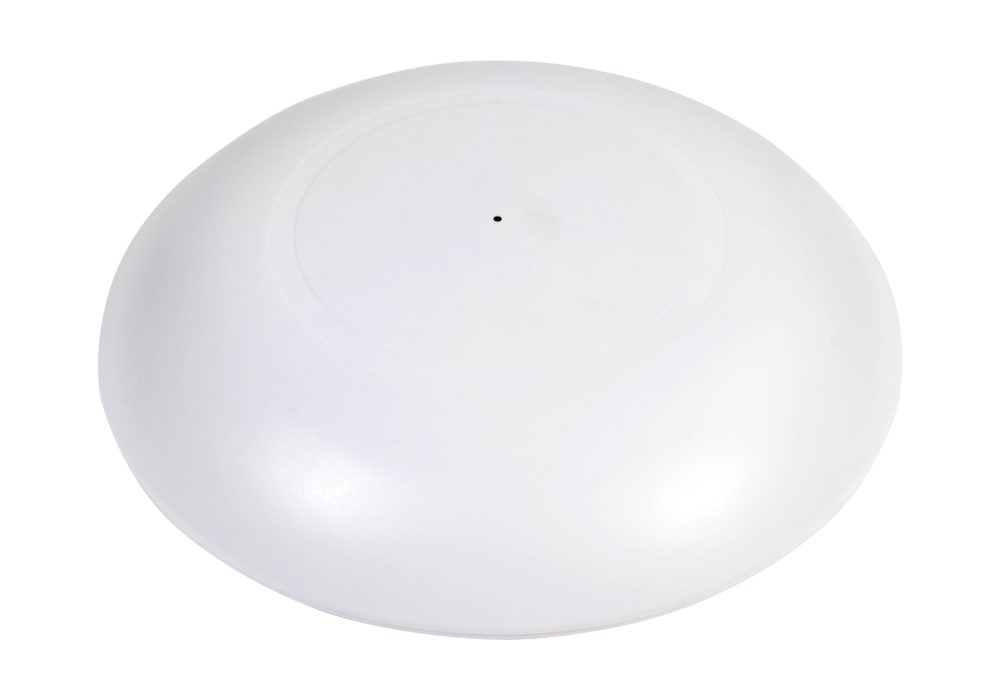

WLW-2ax
WLW-2ax
  • Dual band access point
  • Support for MU-MIMO 2x2
  • PoE+ power supply
  • Seamless roaming
order
TECHNICAL FEATURES WLW-2ax
Wi-Fi 2.4 GHz 802.11b/g/n/ax
5 GHz 802.11a/n/ac/ax
Ethernet 100/1000/2500 Base-T (RJ-45) with PoE+ x1
PoE+ power supply IEEE 802.3at

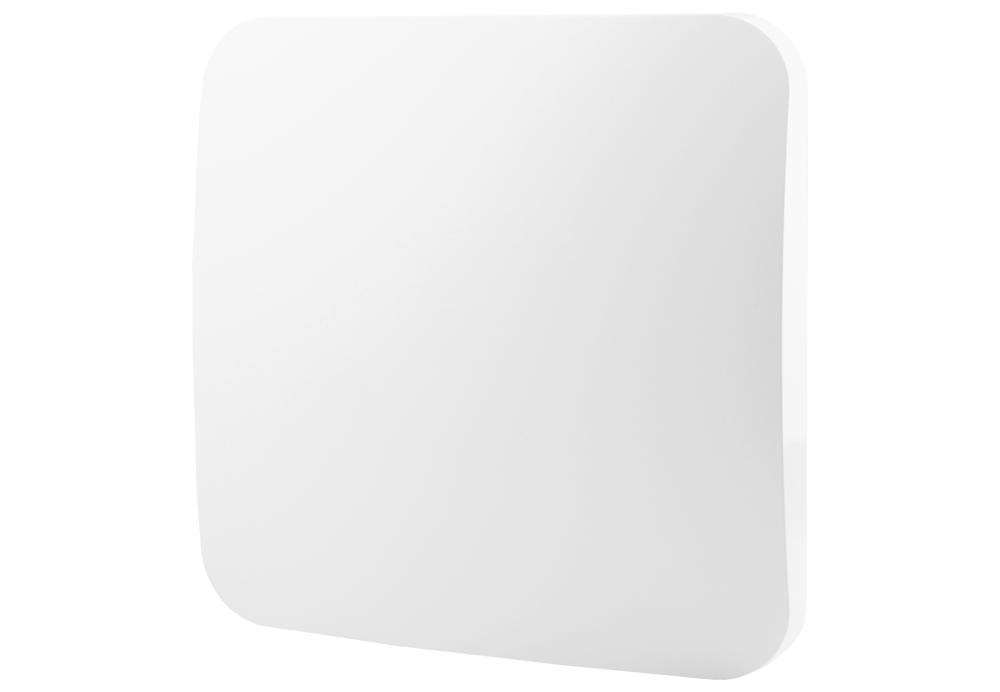

WLW-30-I
WLW-30-I
  • Dual band access point
  • Support for 802.11ax
  • MU-MIMO 2×2 support
  • Built-in antenna
order
TECHNICAL FEATURES WLW-30-I
Wi-Fi 2.4 GHz 802.11b/g/n/ax
5 GHz 802.11a/n/ac/ax
Ethernet 100/1000/2500 Base-T (RJ-45) with PoE+ x1
PoE+ power supply IEEE 802.3at
